BAT20JFILM
BAT20JFILM
Part Number BAT20JFILM
Description DIODE SCHOTTKY 23V 1A SOD323

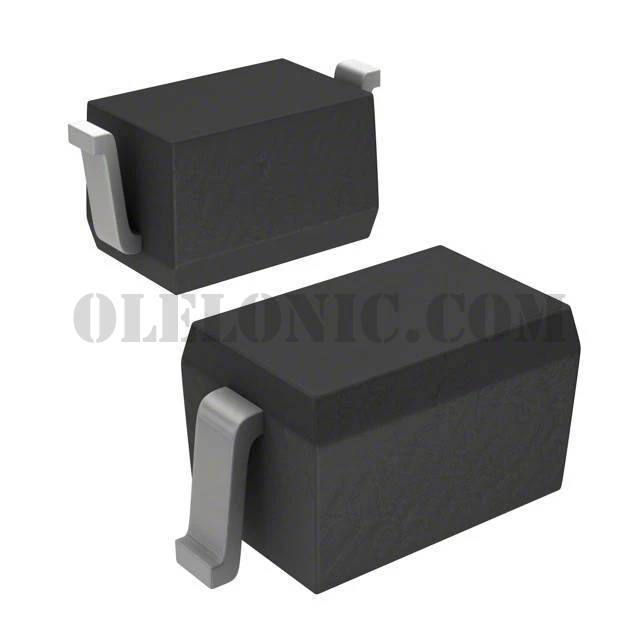

Package / Case SC-76, SOD-323
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Schottky 23V 1A Surface Mount SOD-323
To learn about the specification of BAT20JFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT20JFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT20JFILM.
We are offering BAT20JFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BAT20JFILM - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet BAT20J
Standard Package 3000
Manufacturer STMicroelectronics
Series -
Packaging Tape & Reel (TR)
Part Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 23V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 620mV @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12µA @ 15V
Capacitance @ Vr, F 30pF @ 5V, 1MHz
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 150°C (Max)
Base Part Number BAT20J
