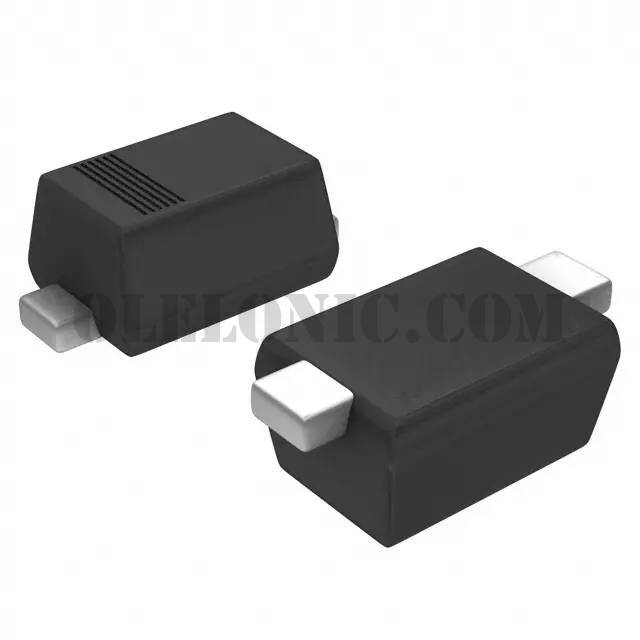

BAS716,115

BAS716,115

Part NumberBAS716,115

ManufacturerNexperia USA Inc.

DescriptionDIODE GEN PURP 75V 200MA SOD523

DatasheetBAS716 Datasheet

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 75V 200mA (DC) Surface Mount SOD-523

To learn about the specification of BAS716,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS716,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS716,115.
We are offering BAS716,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS716,115 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS716 Datasheet
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	3µs
Current - Reverse Leakage @ Vr	5nA @ 75V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	150°C (Max)
Base Part Number	BAS716
