Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS581-02V-V-G
Standard Package	3000
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 1mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	500nA @ 30V
Capacitance @ Vr, F	2pF @ 1V, 1MHz
Mounting Type	Surface Mount

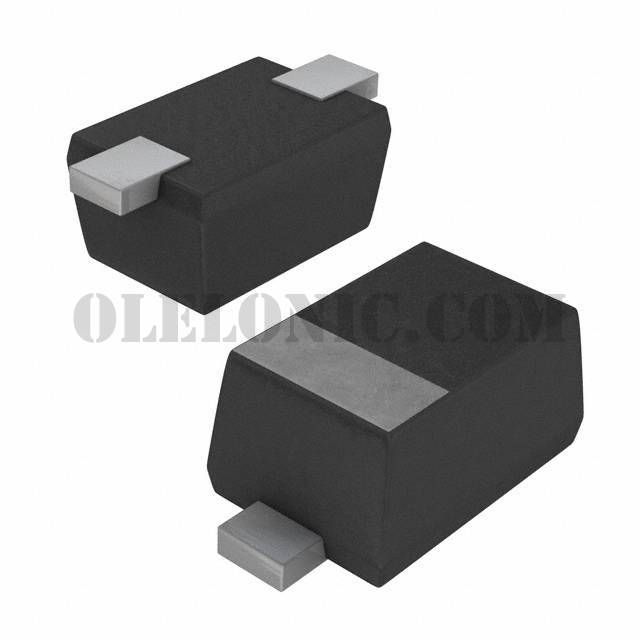

Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	125°C (Max)
