BAS40-04-HE3-18

Part NumberBAS40-04-HE3-18

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE ARRAY SCHOTTKY 40V SOT23

DatasheetBAS40-0x

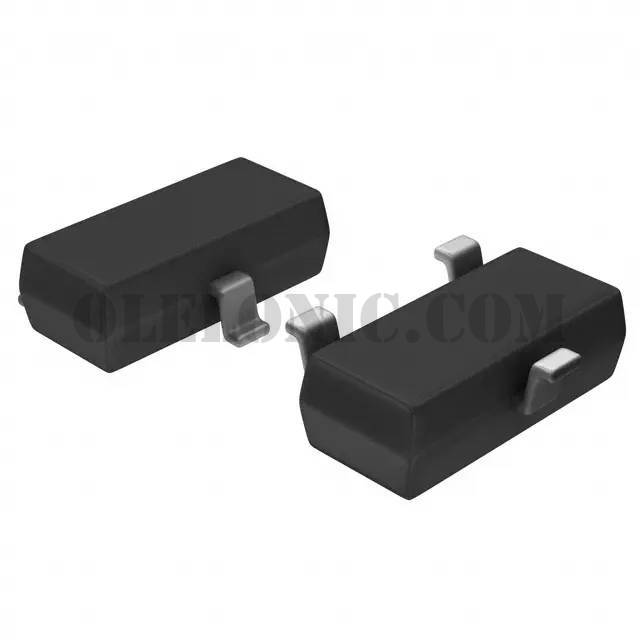

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Schottky 40V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

To learn about the specification of BAS40-04-HE3-18, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS40-04-HE3-18 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS40-04-HE3-18.
We are offering BAS40-04-HE3-18 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS40-04-HE3-18 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAS40-0x
Standard Package	10000
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io) (per Diode)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 40mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	100nA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
