Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS16LD
Standard Package	10000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101, BAS16
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	215mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	500nA @ 80V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount

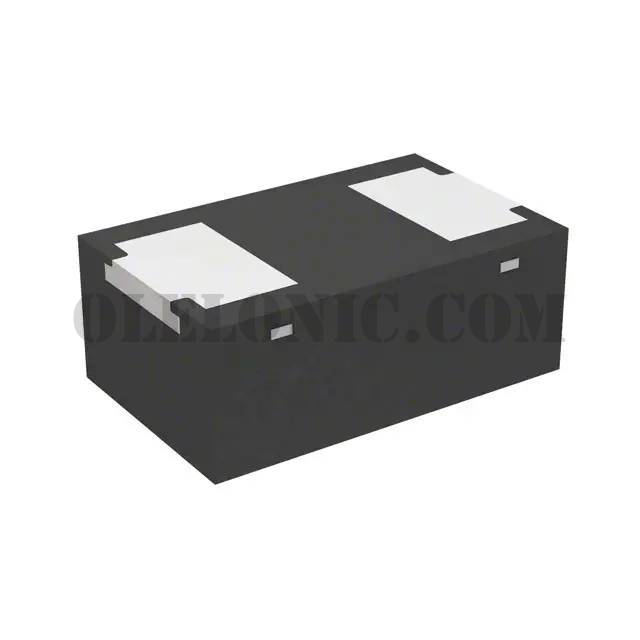

Package / Case	2-XDFN
Supplier Device Package	DFN1006D-2
Operating Temperature - Junction	150°C (Max)
Base Part Number	BAS16L
