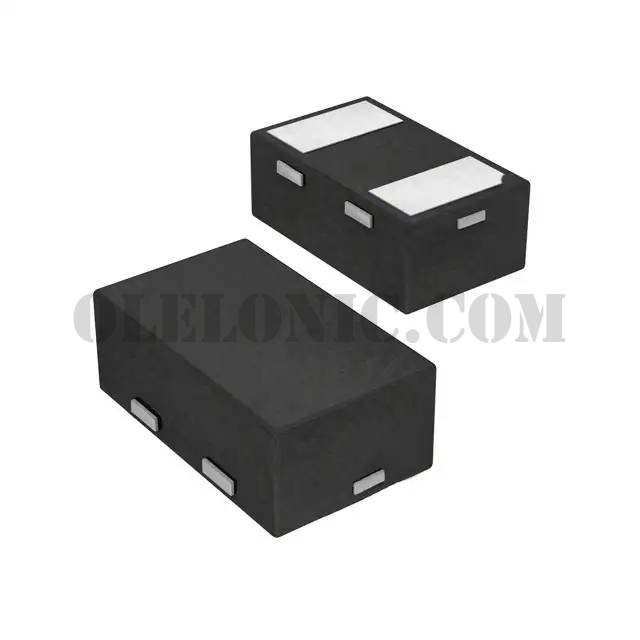

BAS116LPH4-7B

BAS116LPH4-7B

Part NumberBAS116LPH4-7B

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 85V 215MA 2DFN

DatasheetBAS116LPH4

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 85V 215mA (DC) Surface Mount X2-DFN1006-2

To learn about the specification of BAS116LPH4-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS116LPH4-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS116LPH4-7B.
We are offering BAS116LPH4-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS116LPH4-7B - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS116LPH4
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	85V
Current - Average Rectified (Io)	215mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3µs
Current - Reverse Leakage @ Vr	5nA @ 75V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	X2-DFN1006-2
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	BAS116
