BAR46AFILM

Part NumberBAR46AFILM

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY SCHOTTKY 100V SOT23

DatasheetBAR46(AFILM)

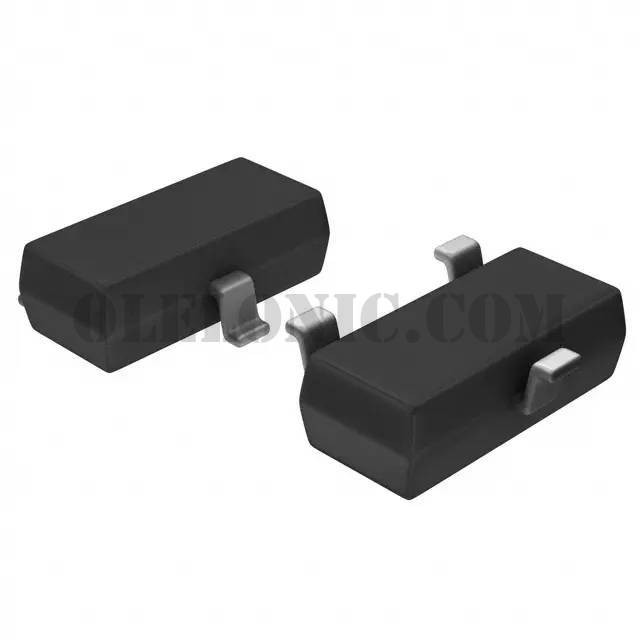

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Anode Schottky 100V 150mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3

To learn about the specification of BAR46AFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAR46AFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAR46AFILM.
We are offering BAR46AFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAR46AFILM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAR46(AFILM)
Standard Package	3000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Common Anode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io) (per Diode)	150mA (DC)
Voltage - Forward (Vf) (Max) @ If	450mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	5µA @ 75V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
