Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82498F Series Datasheet
Standard Package	3000
Manufacturer	EPCOS (TDK)
Series	SIMID
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	8.2nH
Tolerance	±10%
Current Rating (Amps)	700mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Q @ Freq	50 @ 1GHz
Frequency - Self Resonant	5GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	250MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max)	0.055" (1.40mm)

B82422H1222K000	EPCOS (TDK), 2.2µH Unshielded Wirewound Inductor 800mA 160mOhm Max 2-SMD, J-Lead, SIMID	View
B82422A1333K100	EPCOS (TDK), 33µH Unshielded Wirewound Inductor 105mA 4.5Ohm Max 2-SMD, J-Lead, SIMID	View
B82498F1102J000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 240mA 550mOhm Max Nonstandard, SIMID	View
B82432C1102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 600mA 280mOhm Max 2-SMD, J-Lead, SIMID	View
B82496C3180J000	EPCOS (TDK), 18nH Unshielded Wirewound Inductor 400mA 450mOhm Max 0603 (1608 Metric), SIMID	View
B82496C3330J000	EPCOS (TDK), 33nH Unshielded Wirewound Inductor 350mA 600mOhm Max 0603 (1608 Metric), SIMID	View
B82442T1223K050	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 1.04A 238mOhm Max 2-SMD, J-Lead, SIMID	View
B82432C1223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 260mA 1.45Ohm Max 2-SMD, J-Lead, SIMID	View
B82442H1106K000	EPCOS (TDK), 10mH Unshielded Wirewound Inductor 35mA 120Ohm Max 2-SMD, J-Lead, SIMID	View
B82422A1562J100	EPCOS (TDK), 5.6µH Unshielded Wirewound Inductor 140mA 2.6Ohm Max 2-SMD, J-Lead, SIMID	View
B82442H1225K000	EPCOS (TDK), 2.2mH Unshielded Wirewound Inductor 75mA 28Ohm Max 2-SMD, J-Lead, SIMID	View
B82432C1104K000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 145mA 4.7Ohm Max 2-SMD, J-Lead, SIMID	View

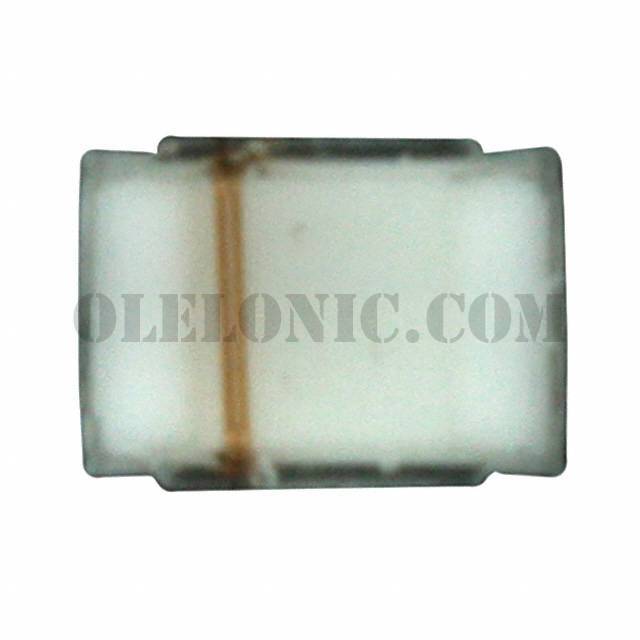

B82498F3829K000
