Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82498F Series Datasheet
Standard Package	3000
Manufacturer	EPCOS (TDK)
Series	SIMID
Packaging	Tape & Reel (TR)
Part Status	Active

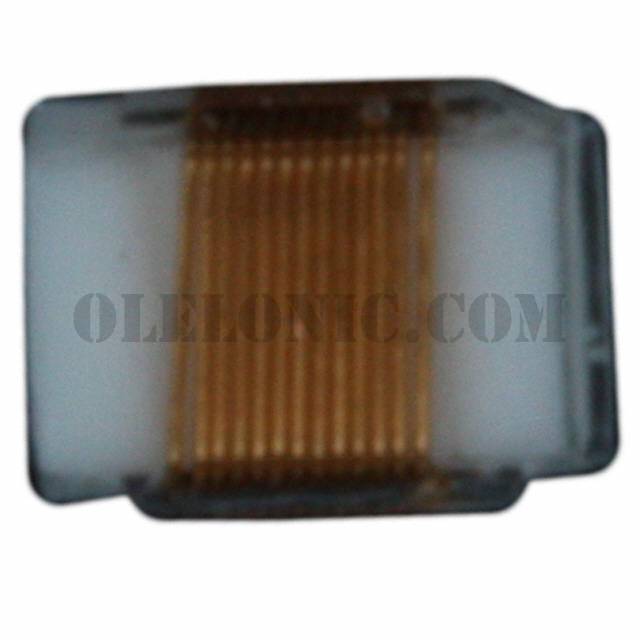

Type	Wirewound
Material - Core	Ceramic
Inductance	150nH
Tolerance	±5%
Current Rating (Amps)	400mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	420mOhm Max
Q @ Freq	45 @ 250MHz
Frequency - Self Resonant	1.15GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max)	0.055" (1.40mm)
