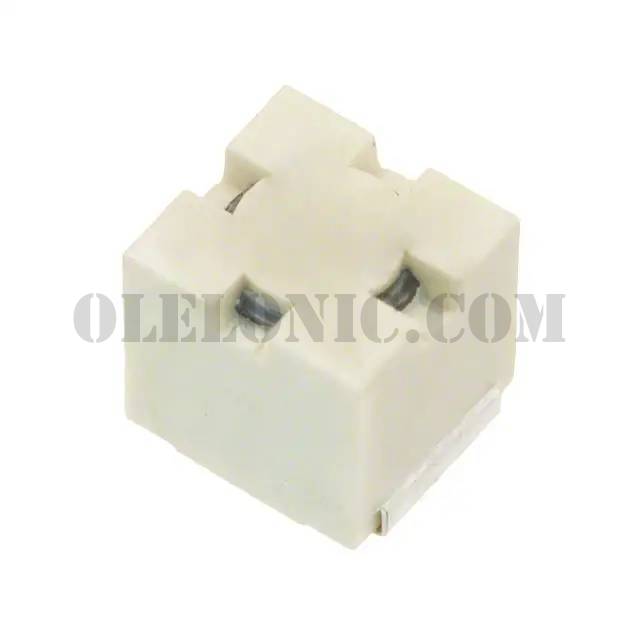

B82442A1223K000


B82442A1223K000

Part NumberB82442A1223K000

Manufacturer

Description

Datasheet

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82442A1223K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerEPCOS (TDK)
SeriesSIMID
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±10%
Current Rating (Amps)480mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)350mOhm Max
Q @ Freq10 @ 2.52MHz
Frequency - Self Resonant13MHz
RatingsAEC-Q200
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test2.52MHz
Mounting TypeSurface Mount
Package / Case2-SMD, J-Lead
Supplier Device Package2220 (5650 Metric)
Size / Dimension0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max)0.209" (5.30mm)
