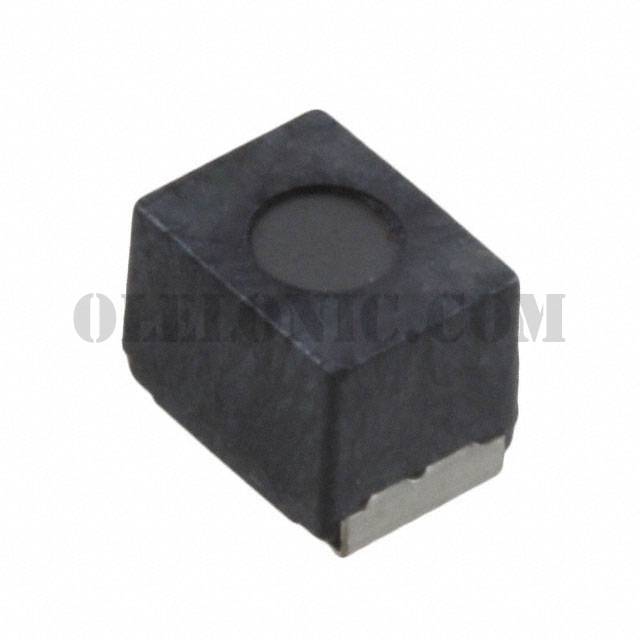

B82432C1104K000


B82432C1104K000

Part NumberB82432C1104K000

Manufacturer

Description

Datasheet

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82432C1104K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2500
ManufacturerEPCOS (TDK)
SeriesSIMID
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±10%
Current Rating (Amps)145mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)4.7Ohm Max
Q @ Freq30 @ 796kHz
Frequency - Self Resonant8MHz
RatingsAEC-Q200
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case2-SMD, J-Lead
Supplier Device Package1812 (4532 Metric)
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)0.134" (3.40mm)
