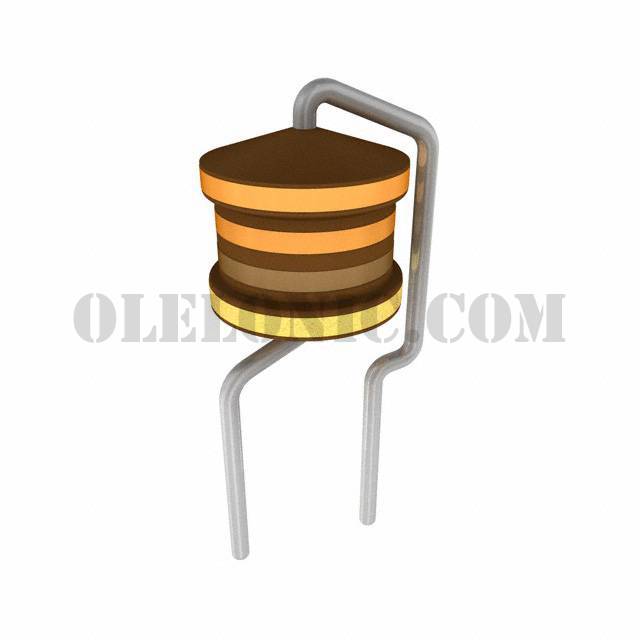

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	330µH
Tolerance	±5%
Current Rating (Amps)	700mA
Current - Saturation	520mA
Shielding	Unshielded
DC Resistance (DCR)	1.53Ohm Max
Q @ Freq	40 @ 79.6kHz
Frequency - Self Resonant	2.8MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)
