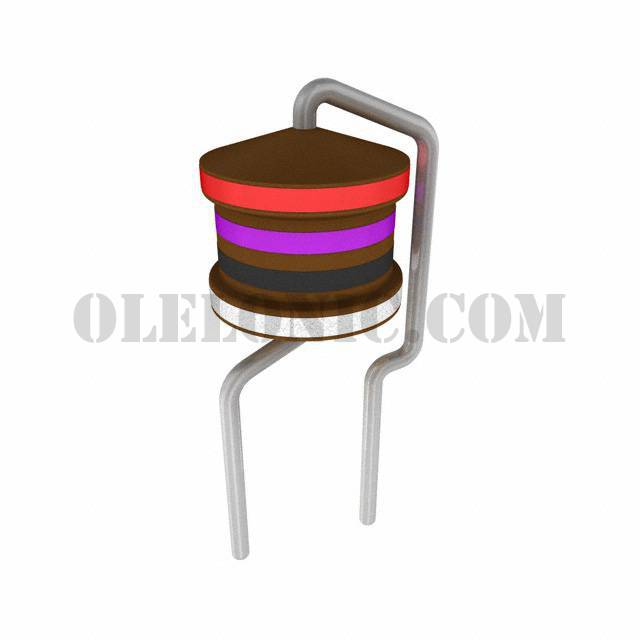

B82144B2273K000


B82144B2273K000

Part NumberB82144B2273K000

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144B2273K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance27µH
Tolerance±10%
Current Rating (Amps)2A
Current - Saturation1.8A
ShieldingUnshielded
DC Resistance (DCR)200mOhm Max
Q @ Freq40 @ 252kHz
Frequency - Self Resonant9.2MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.256" Dia (6.50mm)
Height - Seated (Max)0.551" (14.00mm)
