B360Q-13-F

B360Q-13-F

Part NumberB360Q-13-F

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY 60V 3A SMC

DatasheetB320Q-B360Q

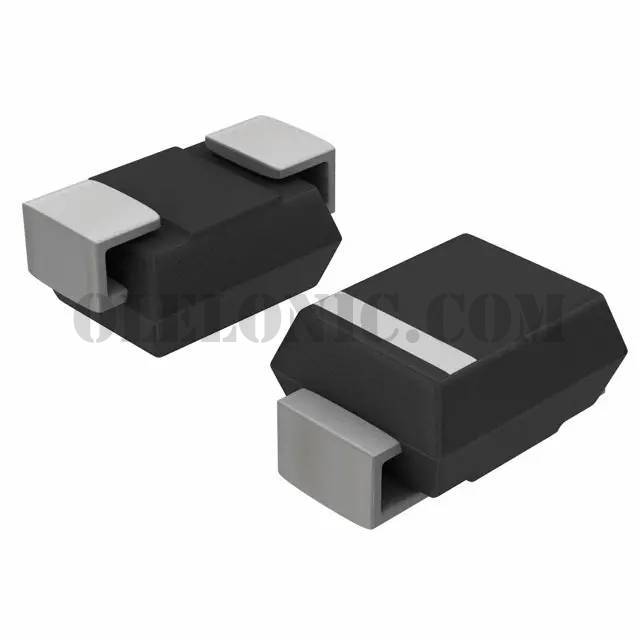

Package / CaseDO-214AB, SMC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 60V 3A Surface Mount SMC

To learn about the specification of B360Q-13-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B360Q-13-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B360Q-13-F.
We are offering B360Q-13-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B360Q-13-F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	B320Q-B360Q
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	700mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 60V
Capacitance @ Vr, F	200pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
Operating Temperature - Junction	-55°C ~ 150°C
