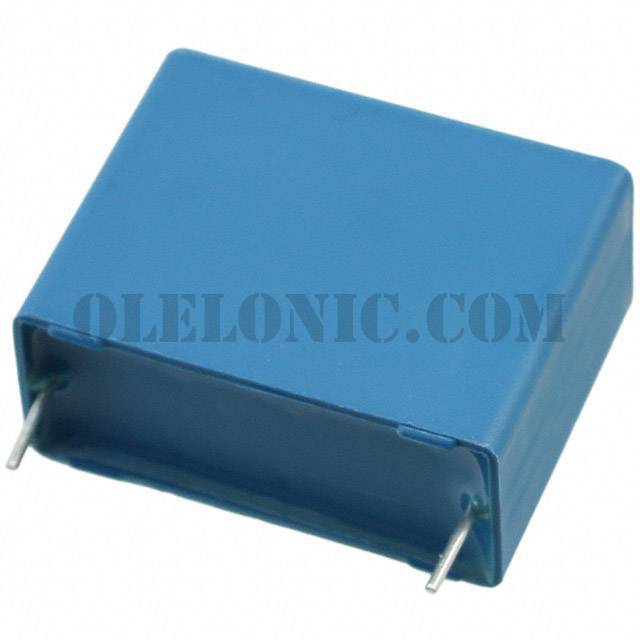

Categories	Capacitors / Film Capacitors
Datasheet	B32651-B32658 Series
Standard Package	260
Manufacturer	EPCOS (TDK)
Series	B32654
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	500V
Voltage Rating - DC	1600V (1.6kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.551" W (31.50mm x 14.00mm)
Height - Seated (Max)	0.965" (24.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Ratings	-
Features	-
