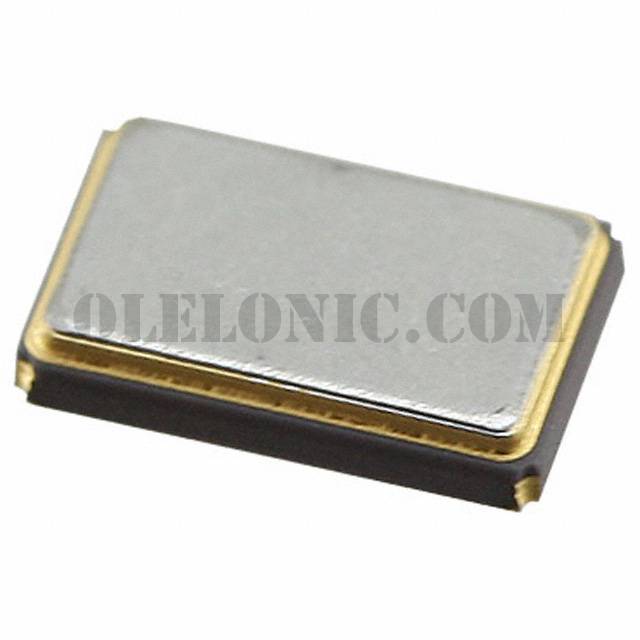

AZ20070003

Part NumberAZ20070003

ManufacturerTXC CORPORATION

DescriptionCRYSTAL 20MHZ 12PF SMD

DatasheetAZ Series Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description20MHz ±30ppm Crystal 12pF 100 Ohms 4-SMD, No Lead

To learn about the specification of AZ20070003, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AZ20070003 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AZ20070003.
We are offering AZ20070003 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AZ20070003 - Product Attributes

Categories

Crystals, Oscillators, Resonators / Crystals

Datasheet

AZ Series Datasheet

Standard Package

3000

Manufacturer

TXC CORPORATION

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Type

MHz Crystal

Frequency

20MHz

Frequency Stability

±50ppm

Frequency Tolerance

±30ppm

Load Capacitance

12pF

ESR (Equivalent Series Resistance)

100 Ohms

Operating Mode

Fundamental

Operating Temperature

-40°C ~ 125°C

Ratings

AEC-Q200

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.024" (0.60mm)
