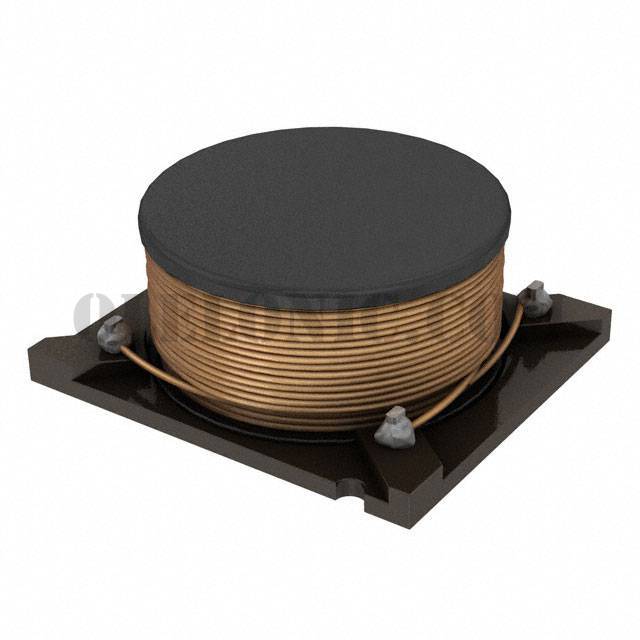

AX97-40470

Part NumberAX97-40470

ManufacturerTriad Magnetics

DescriptionFIXED IND 47UH 3A 70 MOHM SMD

DatasheetAX97 Series Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Unshielded Wirewound Inductor 3A 70mOhm Max Nonstandard

To learn about the specification of AX97-40470, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX97-40470 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX97-40470.
We are offering AX97-40470 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX97-40470 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX97 Series Drawing

Standard Package

200

Manufacturer

Triad Magnetics

Series

AX97

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

47µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

70mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

SMD

Size / Dimension

0.634" L x 0.622" W (16.10mm x 15.80mm)

Height - Seated (Max)

0.284" (7.21mm)
