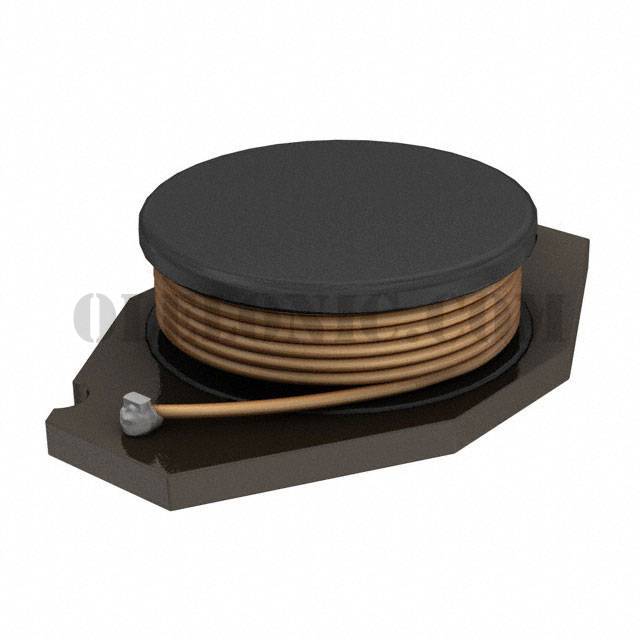

AX97-301R5

Part NumberAX97-301R5

ManufacturerTriad Magnetics

DescriptionFIXED IND 1.5UH 7.9A 10 MOHM SMD

DatasheetAX97 Series Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5µH Unshielded Wirewound Inductor 7.9A 10mOhm Max Nonstandard

To learn about the specification of AX97-301R5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX97-301R5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX97-301R5.
We are offering AX97-301R5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX97-301R5 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX97 Series Drawing

Standard Package

350

Manufacturer

Triad Magnetics

Series

AX97

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

1.5µH

Tolerance

±20%

Current Rating (Amps)

7.9A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

10mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

SMD

Size / Dimension

0.530" L x 0.370" W (13.46mm x 9.40mm)

Height - Seated (Max)

0.232" (5.90mm)
