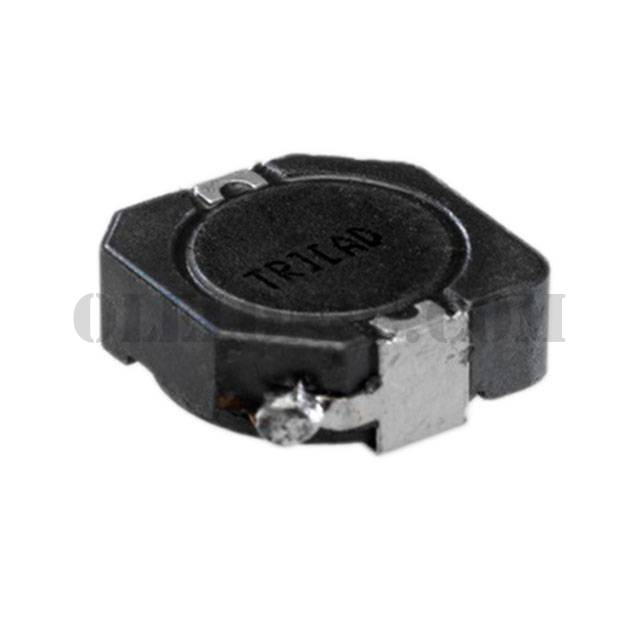

AX104R-100

Part NumberAX104R-100

ManufacturerTriad Magnetics

DescriptionFIXED IND 10UH 4.4A 35 MOHM SMD

DatasheetAX104R Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Wirewound Inductor 4.4A 35mOhm Max Nonstandard

To learn about the specification of AX104R-100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX104R-100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX104R-100.
We are offering AX104R-100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX104R-100 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX104R Series Datasheet

Standard Package

800

Manufacturer

Triad Magnetics

Series

AX104R

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

10µH

Tolerance

±30%

Current Rating (Amps)

4.4A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

35mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

SMD

Size / Dimension

0.409" L x 0.406" W (10.40mm x 10.30mm)

Height - Seated (Max)

0.157" (4.00mm)
