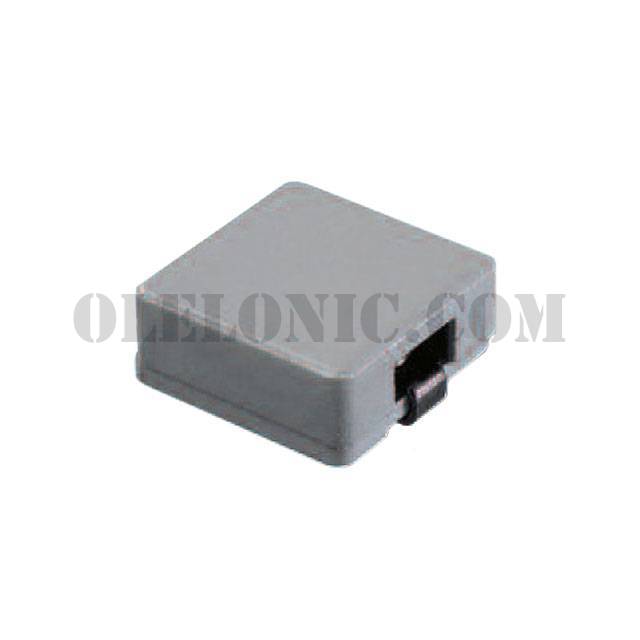

AX02-300R6

Part NumberAX02-300R6

ManufacturerTriad Magnetics

DescriptionFIXED IND 600NH 27A 0.95 MOHM

DatasheetAX02 Series Datasheet

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description600nH Shielded Wirewound Inductor 27A 0.95mOhm Max 2-SMD, J-Lead

To learn about the specification of AX02-300R6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX02-300R6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX02-300R6.
We are offering AX02-300R6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX02-300R6 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX02 Series Datasheet

Standard Package

480

Manufacturer

Triad Magnetics

Series

AX02

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

600nH

Tolerance

±20%

Current Rating (Amps)

27A

Current - Saturation

40A

Shielding

Shielded

DC Resistance (DCR)

0.95mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

2-SMD, J-Lead

Supplier Device Package

SMD

Size / Dimension

0.524" L x 0.591" W (13.30mm x 15.00mm)

Height - Seated (Max)

0.256" (6.50mm)
