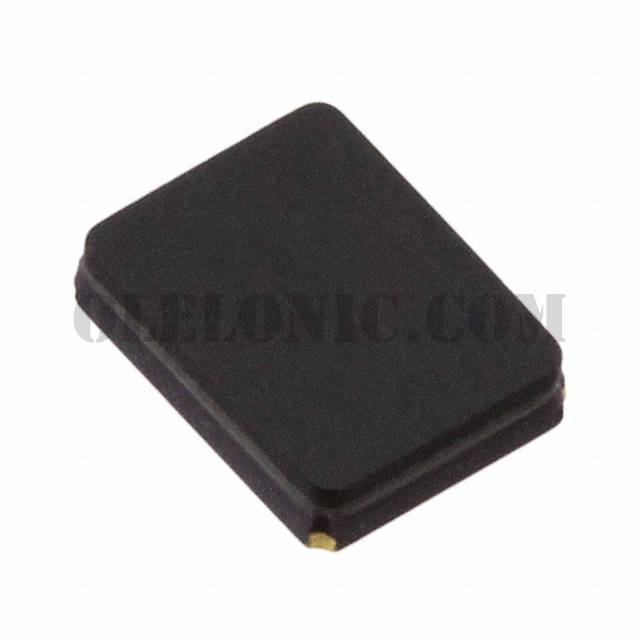

AV-16.9344MDHE-T

Part NumberAV-16.9344MDHE-T

ManufacturerTXC CORPORATION

DescriptionCRYSTAL 16.9344MHZ 12PF SMD

DatasheetAV Series Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description16.9344MHz ±20ppm Crystal 12pF 120 Ohms 4-SMD, No Lead

To learn about the specification of AV-16.9344MDHE-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AV-16.9344MDHE-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AV-16.9344MDHE-T.
We are offering AV-16.9344MDHE-T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AV-16.9344MDHE-T - Product Attributes

Categories

Crystals, Oscillators, Resonators / Crystals

Datasheet

AV Series Datasheet

Standard Package

1000

Manufacturer

TXC CORPORATION

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Type

MHz Crystal

Frequency

16.9344MHz

Frequency Stability

±30ppm

Frequency Tolerance

±20ppm

Load Capacitance

12pF

ESR (Equivalent Series Resistance)

120 Ohms

Operating Mode

Fundamental

Operating Temperature

-40°C ~ 85°C

Ratings

AEC-Q200

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.035" (0.90mm)
