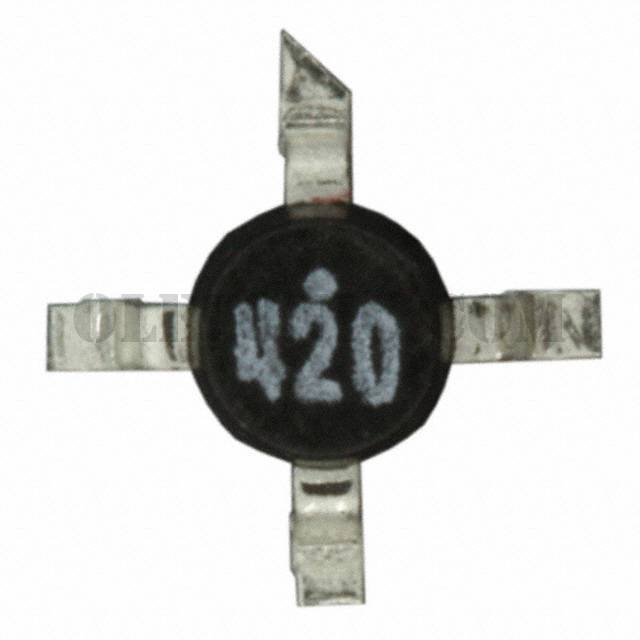

AT-42086-TR1G

Part NumberAT-42086-TR1G

ManufacturerBroadcom Limited

DescriptionRF TRANS NPN 12V 8GHZ 86 PLASTIC

DatasheetAT-42086

Package / CaseSOT-86

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 12V 80mA 8GHz 500mW Surface Mount 86 Plastic

To learn about the specification of AT-42086-TR1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AT-42086-TR1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AT-42086-TR1G.
We are offering AT-42086-TR1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AT-42086-TR1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

Datasheet

AT-42086

Standard Package

1000

Manufacturer

Broadcom Limited

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Transistor Type

NPN

Voltage - Collector Emitter Breakdown (Max)

12V

Frequency - Transition

8GHz

Noise Figure (dB Typ @ f)

1.9dB ~ 3.5dB @ 2GHz ~ 4GHz

Gain

9dB ~ 13dB

Power - Max

500mW

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 35mA, 8V

Current - Collector (Ic) (Max)

80mA

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

SOT-86

Supplier Device Package

86 Plastic

Base Part Number

AT42086
