ASPIAIG-H8540-220M-T
ASPIAIG-H8540-220M-T

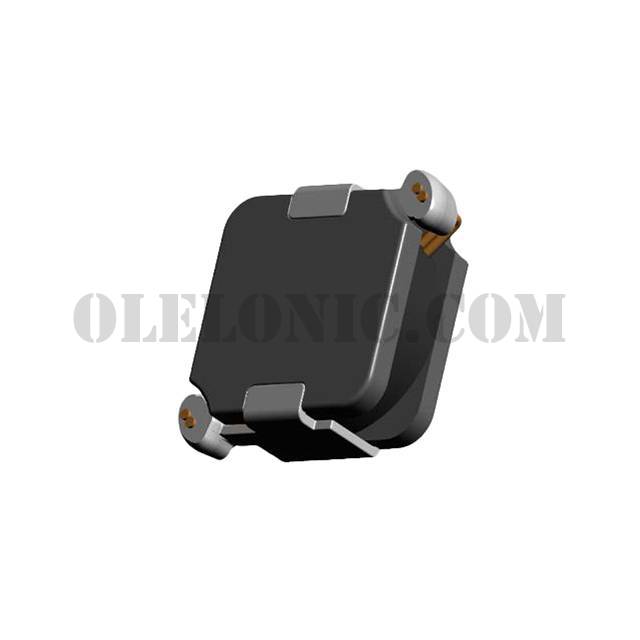

Part Number ASPIAIG-H8540-220M-T Description FIXED IND 22UH 2.5A 108.6MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Wirewound Inductor 2.5A 108.6mOhm Nonstandard
To learn about the specification of ASPIAIG-H8540-220M-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ASPIAIG-H8540-220M-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ASPIAIG-H8540-220M-T.
We are offering ASPIAIG-H8540-220M-T for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ASPIAIG-H8540-220M-T - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet ASPIAIG-H Series Datasheet Standard Package 1000 Manufacturer Abracon LLC Series ASPIAIG-H8540 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Metal Inductance 22µH Tolerance ±20% Current Rating (Amps) 2.5A Current - Saturation 4.2A Shielding Shielded DC Resistance (DCR) 108.6mOhm Q @ Freq - Frequency - Self Resonant 7MHz Ratings AEC-Q200 Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.346" L x 0.335" W (8.80mm x 8.50mm) Height - Seated (Max) 0.157" (4.00mm)
