ASPI-0504-220K-T
ASPI-0504-220K-T
Part Number ASPI-0504-220K-T
Description FIXED IND 22UH 1.11A 180 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed

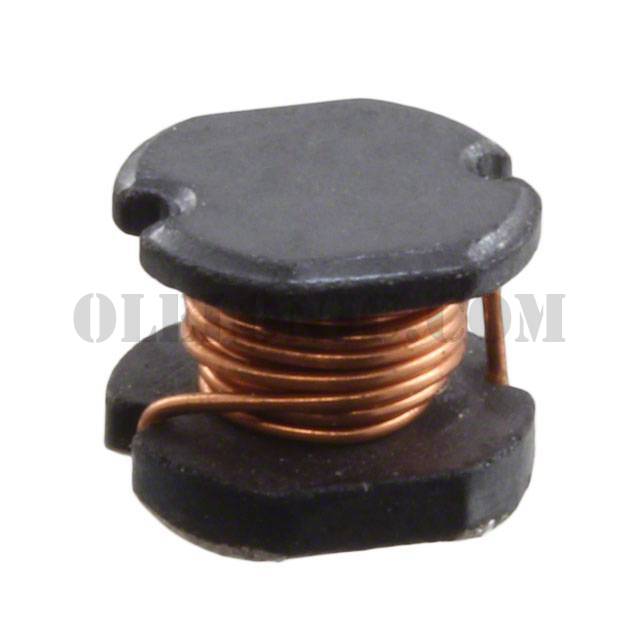

Detailed Description 22µH Unshielded Wirewound Inductor 1.11A 180mOhm Max Nonstandard
To learn about the specification of ASPI-0504-220K-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ASPI-0504-220K-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ASPI-0504-220K-T.
We are offering ASPI-0504-220K-T for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ASPI-0504-220K-T - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet ASPI-0504
Standard Package 1500
Manufacturer Abracon LLC
Series ASPI-0504
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22µH
Tolerance ±10%
Current Rating (Amps) 1.11A
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 180mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 2.52MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.177" (4.50mm)
