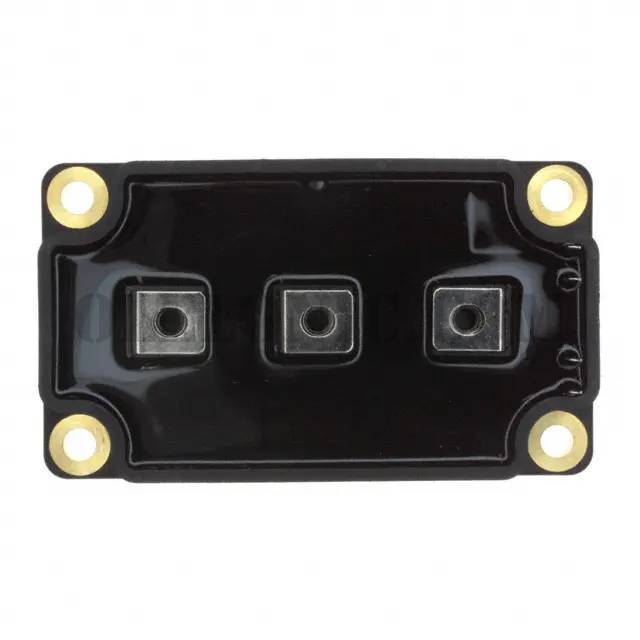

APTM50AM24SG

Part NumberAPTM50AM24SG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 500V 150A SP6

DatasheetAPTM50AM24SG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 500V 150A 1250W Chassis Mount SP6

To learn about the specification of APTM50AM24SG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50AM24SG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50AM24SG.
We are offering APTM50AM24SG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50AM24SG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM50AM24SG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	150A
Rds On (Max) @ Id, Vgs	28mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs	434nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	19600pF @ 25V
Power - Max	1250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
