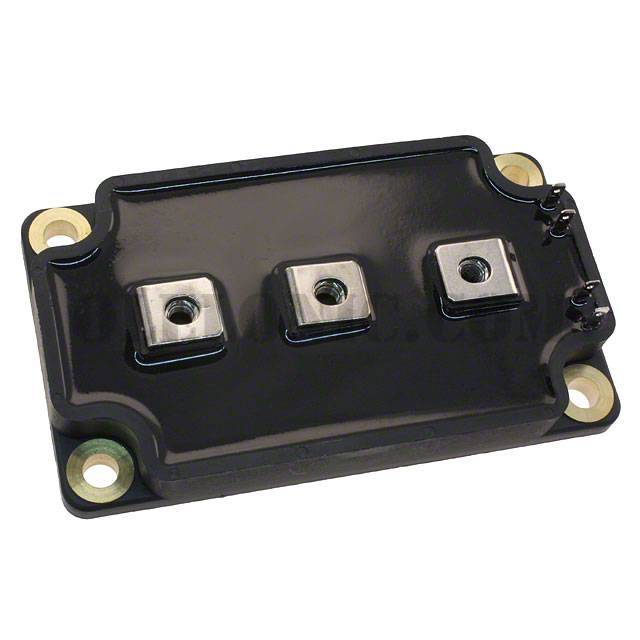

APTM100A13SG

Part NumberAPTM100A13SG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1000V 65A SP6

DatasheetAPTM100A13SG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1000V (1kV) 65A 1250W Chassis Mount SP6

To learn about the specification of APTM100A13SG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100A13SG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100A13SG.
We are offering APTM100A13SG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100A13SG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM100A13SG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C	65A
Rds On (Max) @ Id, Vgs	156mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id	5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs	562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	15200pF @ 25V
Power - Max	1250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
