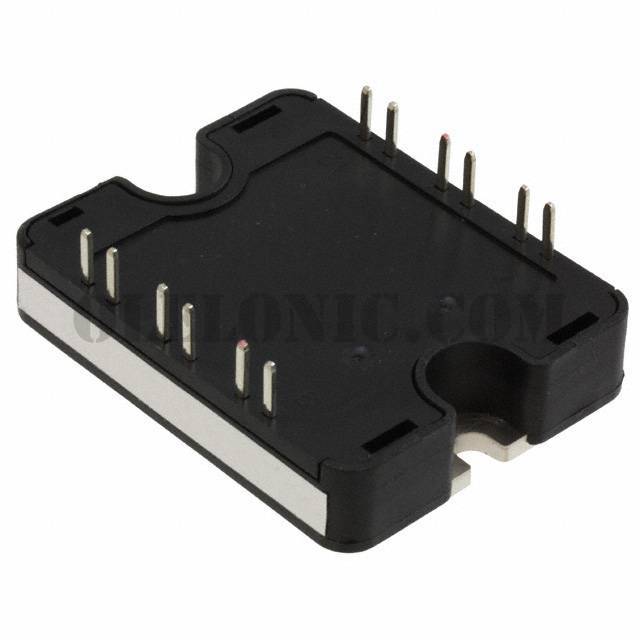

APTGT75A120T1G

Part NumberAPTGT75A120T1G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH PH LEG SP1

DatasheetAPTGT75A120T1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 110A 357W Chassis Mount SP1

To learn about the specification of APTGT75A120T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT75A120T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT75A120T1G.
We are offering APTGT75A120T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT75A120T1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT75A120T1G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

110A

Power - Max

357W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

5.34nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP1

Supplier Device Package

SP1
