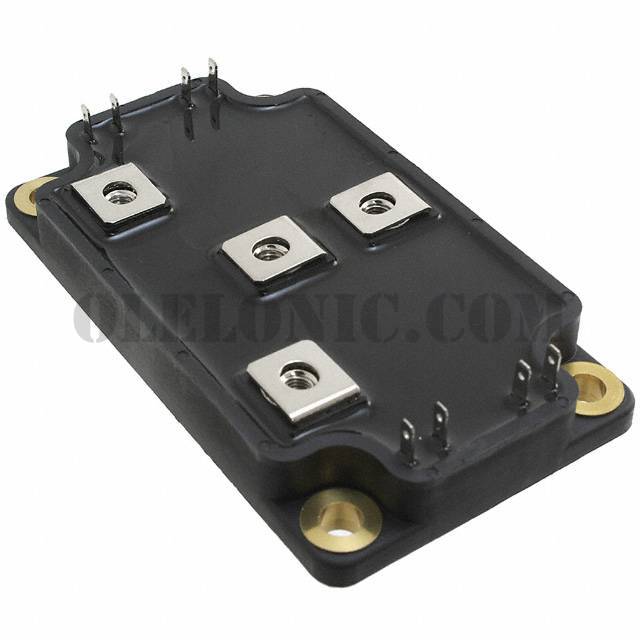

APTGT300TL60G

Part NumberAPTGT300TL60G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT 3LVL INVERT SP6

DatasheetAPTGT300TL60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 600V 400A 935W Chassis Mount SP6

To learn about the specification of APTGT300TL60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT300TL60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT300TL60G.
We are offering APTGT300TL60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT300TL60G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT300TL60G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Level Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

400A

Power - Max

935W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 300A

Current - Collector Cutoff (Max)

350µA

Input Capacitance (Cies) @ Vce

18.4nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
