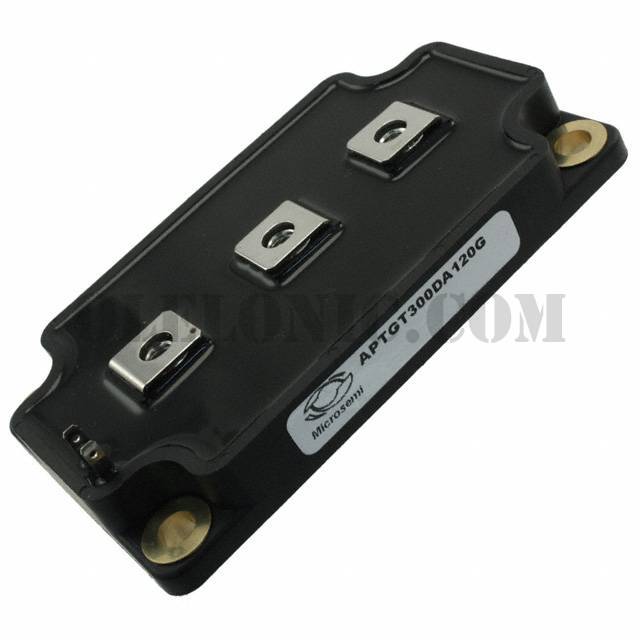

APTGT300DA120G

Part NumberAPTGT300DA120G

ManufacturerMicrosemi Corporation

DescriptionIGBT PHASE BOOST CHOP 1200V SP6

DatasheetAPTGT300DA120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 420A 1380W Chassis Mount SP6

To learn about the specification of APTGT300DA120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT300DA120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT300DA120G.
We are offering APTGT300DA120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT300DA120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT300DA120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

420A

Power - Max

1380W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 300A

Current - Collector Cutoff (Max)

500µA

Input Capacitance (Cies) @ Vce

21nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
