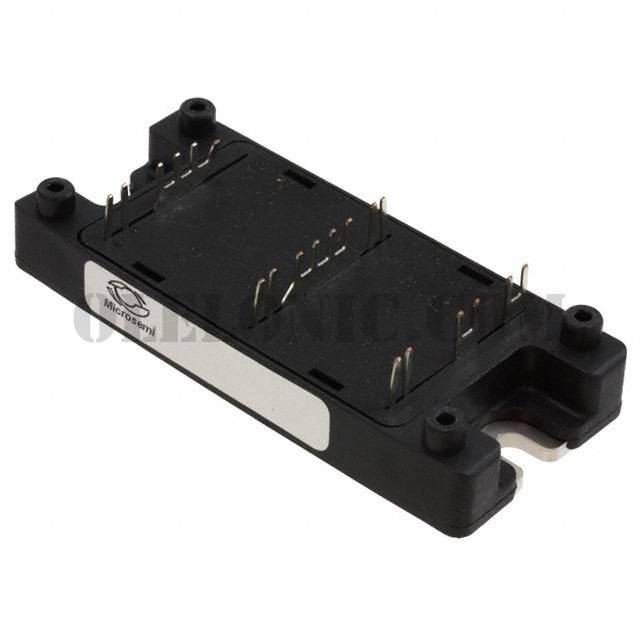

APTGT200DU60TG

Part NumberAPTGT200DU60TG

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH DL SRC SP4

DatasheetAPTGT200DU60TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual, Common Source 600V 290A 625W Chassis Mount SP4

To learn about the specification of APTGT200DU60TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT200DU60TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT200DU60TG.
We are offering APTGT200DU60TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT200DU60TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT200DU60TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Dual, Common Source

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

290A

Power - Max

625W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 200A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

12.3nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
