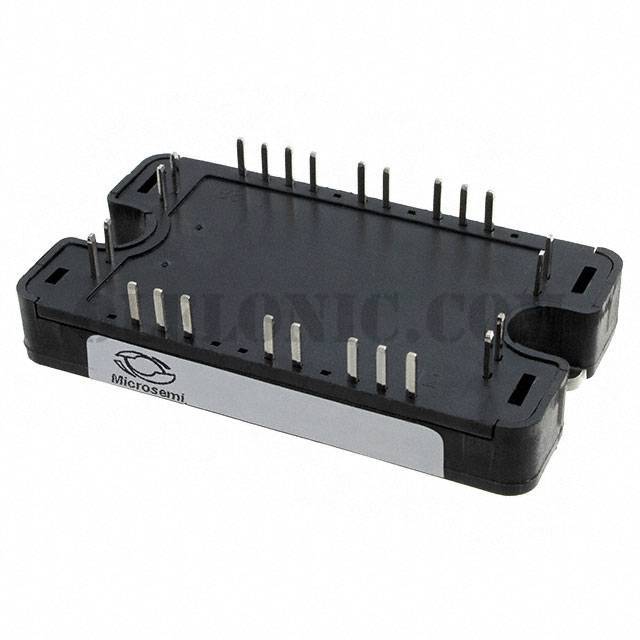

APTGT200DA60T3AG

Part NumberAPTGT200DA60T3AG

ManufacturerMicrosemi Corporation

DescriptionMOD IGBT 600V 290A SP3

DatasheetAPTGT200DA60T3AG

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 600V 290A 750W Chassis Mount SP3

To learn about the specification of APTGT200DA60T3AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT200DA60T3AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT200DA60T3AG.
We are offering APTGT200DA60T3AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT200DA60T3AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT200DA60T3AG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

290A

Power - Max

750W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 200A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

12.3nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
