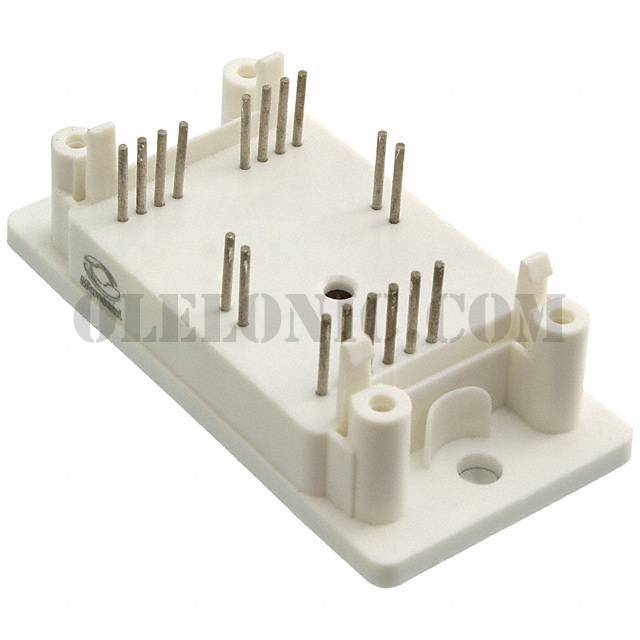

APTGT200A602G

Part NumberAPTGT200A602G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT3 PHASE LEG SP2

DatasheetAPTGT200A602G

Package / CaseSP2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 600V 290A 625W Chassis Mount SP2

To learn about the specification of APTGT200A602G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT200A602G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT200A602G.
We are offering APTGT200A602G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT200A602G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT200A602G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

290A

Power - Max

625W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 200A

Current - Collector Cutoff (Max)

50µA

Input Capacitance (Cies) @ Vce

12.3nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP2

Supplier Device Package

SP2
