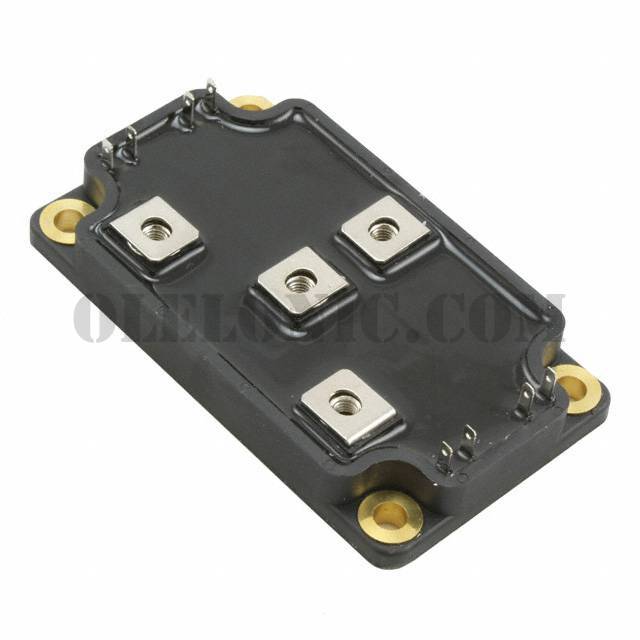

APTGT150TL60G

Part NumberAPTGT150TL60G

ManufacturerMicrosemi Corporation

DescriptionIGBT 3-LEVEL INVERTER 600V SP6

DatasheetAPTGT150TL60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 600V 200A 480W Chassis Mount SP6

To learn about the specification of APTGT150TL60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT150TL60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT150TL60G.
We are offering APTGT150TL60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT150TL60G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT150TL60G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Level Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

200A

Power - Max

480W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 150A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

9.2nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
