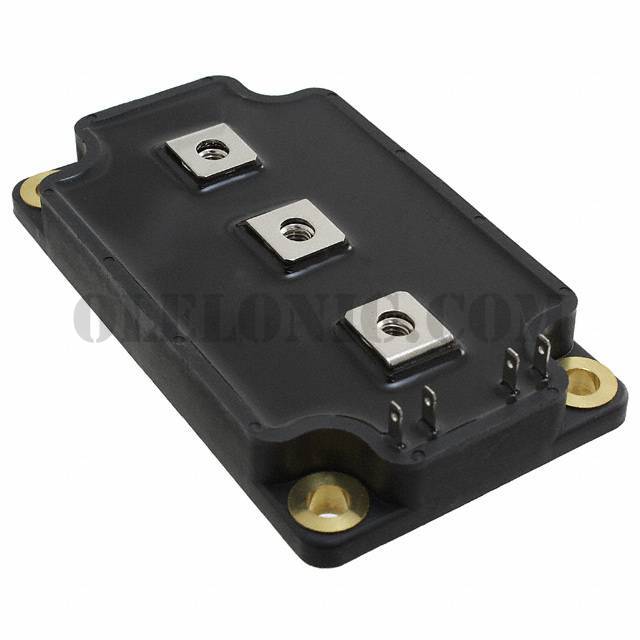

APTGT150DU120G

Part NumberAPTGT150DU120G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH DL SRC SP6

DatasheetAPTGT150DU120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Dual, Common Source 1200V 220A 690W Chassis Mount SP6

To learn about the specification of APTGT150DU120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT150DU120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT150DU120G.
We are offering APTGT150DU120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT150DU120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT150DU120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Dual, Common Source

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

220A

Power - Max

690W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 150A

Current - Collector Cutoff (Max)

350µA

Input Capacitance (Cies) @ Vce

10.7nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
