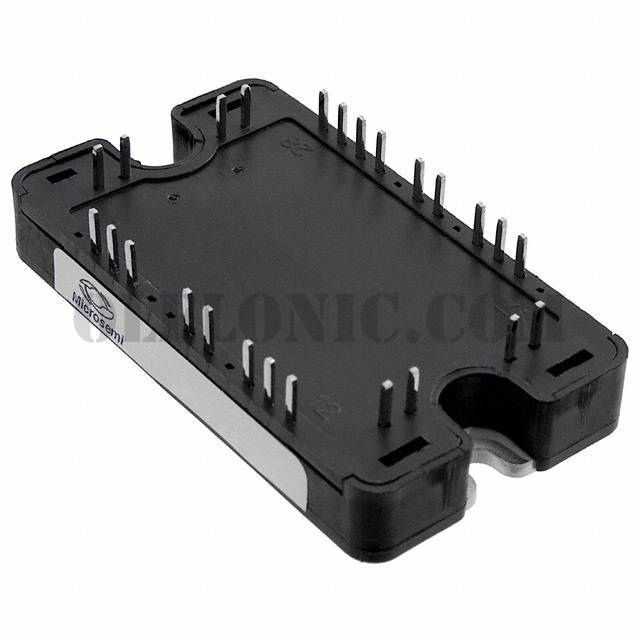

APTGT100A170TG

Part NumberAPTGT100A170TG

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH PH LEG SP4

DatasheetAPTGT100A170TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1700V 150A 560W Chassis Mount SP4

To learn about the specification of APTGT100A170TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT100A170TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT100A170TG.
We are offering APTGT100A170TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT100A170TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGT100A170TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1700V

Current - Collector (Ic) (Max)

150A

Power - Max

560W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 100A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

9nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
