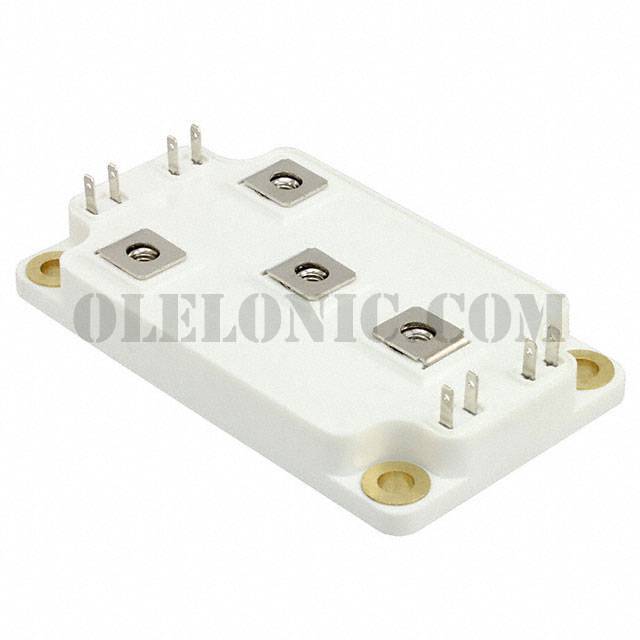

APTGLQ200HR120G

Part NumberAPTGLQ200HR120G

ManufacturerMicrosemi Corporation

DescriptionPWR MOD PHASE LEG/DUAL CE SP6

DatasheetAPTGLQ200HR120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop 1200V 300A 1000W Through Hole SP6

To learn about the specification of APTGLQ200HR120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGLQ200HR120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGLQ200HR120G.
We are offering APTGLQ200HR120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGLQ200HR120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGLQ200HR120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

300A

Power - Max

1000W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 160A

Current - Collector Cutoff (Max)

200µA

Input Capacitance (Cies) @ Vce

9.2nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

SP6

Supplier Device Package

SP6
