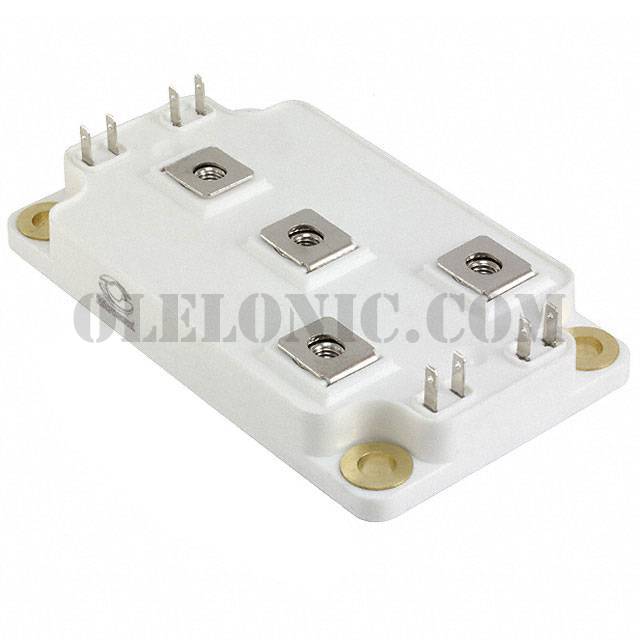

APTGLQ200H120G

Part NumberAPTGLQ200H120G

ManufacturerMicrosemi Corporation

DescriptionPWR MOD IGBT4 1200V 350A SP6

DatasheetAPTGLQ200H120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Full Bridge 1200V 350A 1000W Chassis Mount SP6

To learn about the specification of APTGLQ200H120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGLQ200H120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGLQ200H120G.
We are offering APTGLQ200H120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGLQ200H120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGLQ200H120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Full Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

350A

Power - Max

1000W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 200A

Current - Collector Cutoff (Max)

100µA

Input Capacitance (Cies) @ Vce

12.3nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
