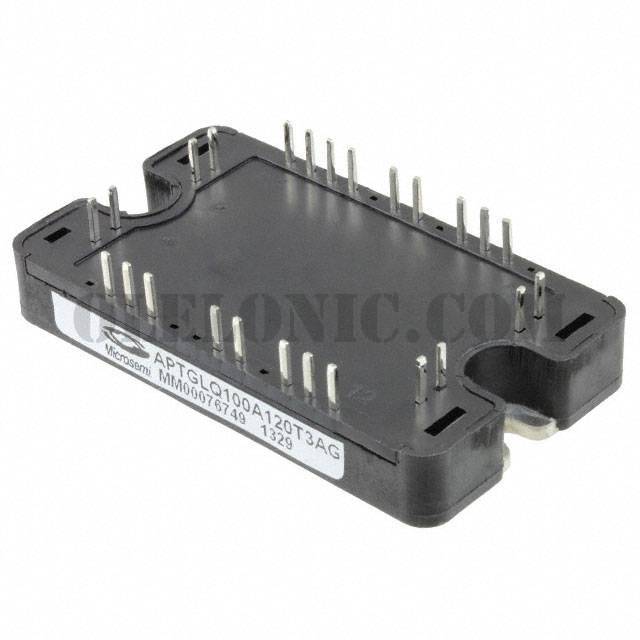

APTGLQ100A120T3AG

Part NumberAPTGLQ100A120T3AG

ManufacturerMicrosemi Corporation

DescriptionPWR MOD IGBT4 1200V 185A SP3

DatasheetAPTGLQ100A120T3AG

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 185A 650W Through Hole SP3

To learn about the specification of APTGLQ100A120T3AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGLQ100A120T3AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGLQ100A120T3AG.
We are offering APTGLQ100A120T3AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGLQ100A120T3AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGLQ100A120T3AG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

185A

Power - Max

650W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 100A

Current - Collector Cutoff (Max)

50µA

Input Capacitance (Cies) @ Vce

6.15nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

SP3

Supplier Device Package

SP3
