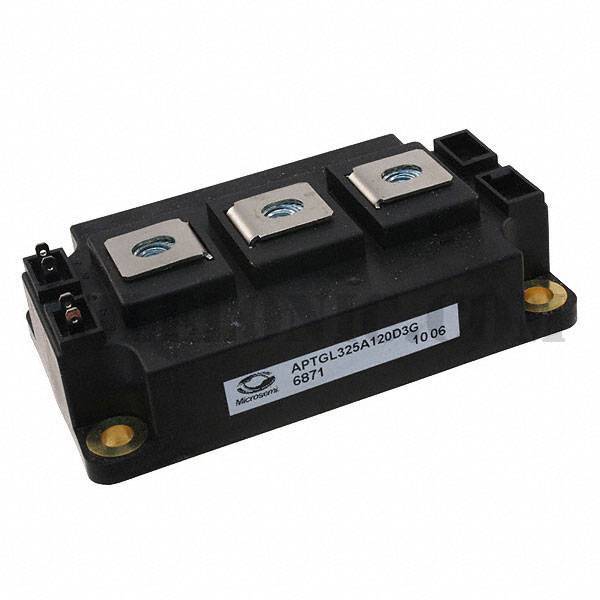

APTGL325A120D3G

Part NumberAPTGL325A120D3G

ManufacturerMicrosemi Corporation

DescriptionIGBT4 PHASE LEG 1200V 420A D3

DatasheetAPTGL325A120D3G

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 420A 1500W Chassis Mount D3

To learn about the specification of APTGL325A120D3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL325A120D3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL325A120D3G.
We are offering APTGL325A120D3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL325A120D3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGL325A120D3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

420A

Power - Max

1500W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 300A

Current - Collector Cutoff (Max)

5mA

Input Capacitance (Cies) @ Vce

18.6nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

D-3 Module

Supplier Device Package
