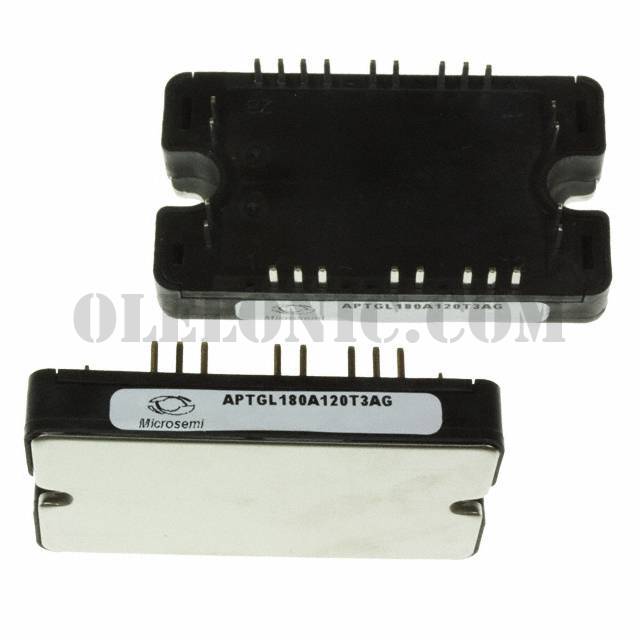

APTGL180A120T3AG

Part NumberAPTGL180A120T3AG

ManufacturerMicrosemi Corporation

DescriptionIGBT ARRAY 1200V 230A 940W SP3

DatasheetAPTGL180A120T3AG

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 230A 940W Chassis Mount SP3

To learn about the specification of APTGL180A120T3AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL180A120T3AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL180A120T3AG.
We are offering APTGL180A120T3AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL180A120T3AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGL180A120T3AG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

230A

Power - Max

940W

Vce(on) (Max) @ Vge, Ic

2.2V @ 15V, 150A

Current - Collector Cutoff (Max)

300µA

Input Capacitance (Cies) @ Vce

9.3nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
