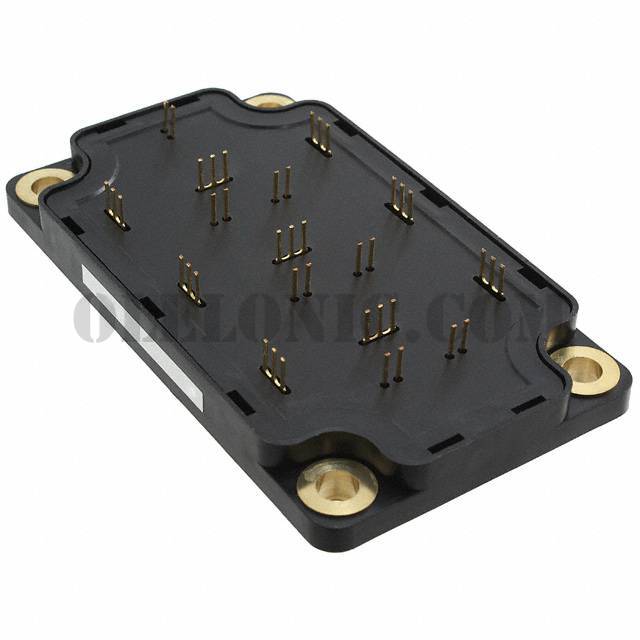

APTGL120TA120TPG

Part NumberAPTGL120TA120TPG

ManufacturerMicrosemi Corporation

DescriptionIGBT4 PHASE LEG 1200V 140A SP6

DatasheetAPTGL120TA120TPG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Phase 1200V 140A 517W Chassis Mount SP6-P

To learn about the specification of APTGL120TA120TPG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL120TA120TPG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL120TA120TPG.
We are offering APTGL120TA120TPG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL120TA120TPG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGL120TA120TPG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Three Phase

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

140A

Power - Max

517W

Vce(on) (Max) @ Vge, Ic

2.15V @ 15V, 100A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

6.2nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6-P
