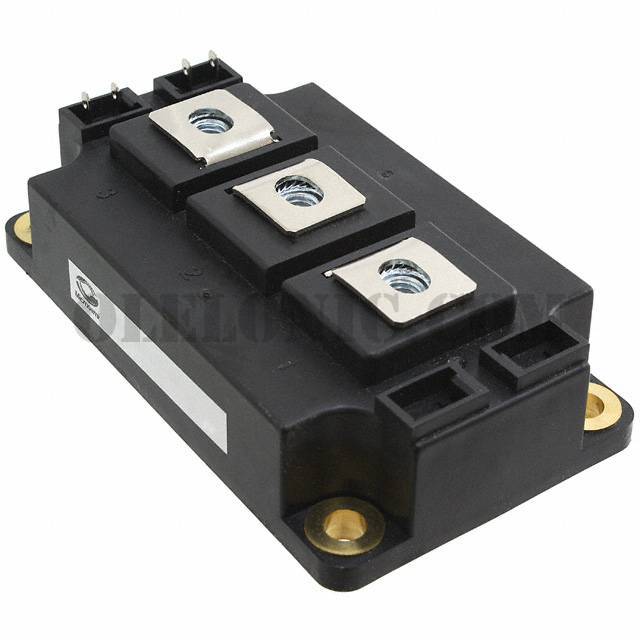

APTGF300A120D3G

Part NumberAPTGF300A120D3G

ManufacturerMicrosemi Corporation

DescriptionIGBT MODULE NPT PHASE LEG D3

DatasheetAPTGF300A120D3G

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Half Bridge 1200V 420A 2100W Chassis Mount D3

To learn about the specification of APTGF300A120D3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF300A120D3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF300A120D3G.
We are offering APTGF300A120D3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF300A120D3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF300A120D3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

420A

Power - Max

2100W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 300A

Current - Collector Cutoff (Max)

5mA

Input Capacitance (Cies) @ Vce

19nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

D-3 Module

Supplier Device Package
