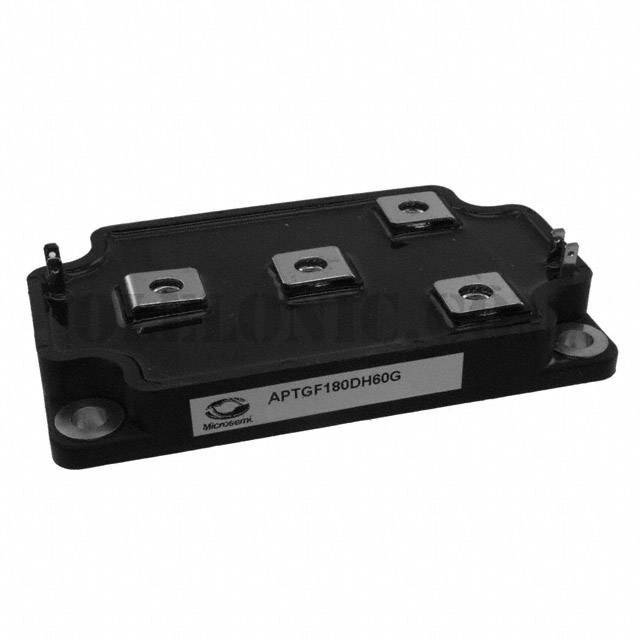

APTGF180DH60G

Part NumberAPTGF180DH60G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 600V 180A SP6

DatasheetAPTGF180DH60G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Asymmetrical Bridge 600V 220A 833W Chassis Mount SP6

To learn about the specification of APTGF180DH60G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF180DH60G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF180DH60G.
We are offering APTGF180DH60G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF180DH60G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF180DH60G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Asymmetrical Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

220A

Power - Max

833W

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 180A

Current - Collector Cutoff (Max)

300µA

Input Capacitance (Cies) @ Vce

8.6nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
