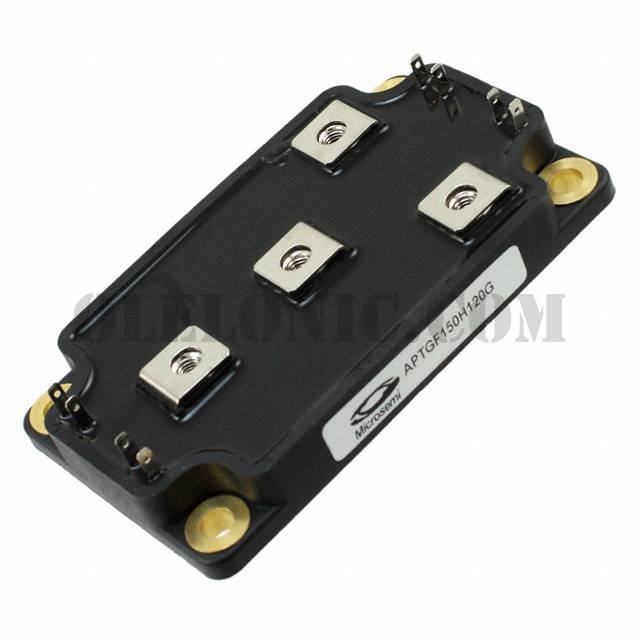

APTGF150H120G

Part NumberAPTGF150H120G

ManufacturerMicrosemi Corporation

DescriptionIGBT MODULE NPT FULL BRIDGE SP6

DatasheetAPTGF150H120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Full Bridge Inverter 1200V 200A 961W Chassis Mount SP6

To learn about the specification of APTGF150H120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF150H120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF150H120G.
We are offering APTGF150H120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF150H120G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF150H120G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

200A

Power - Max

961W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 150A

Current - Collector Cutoff (Max)

350µA

Input Capacitance (Cies) @ Vce

10.2nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
