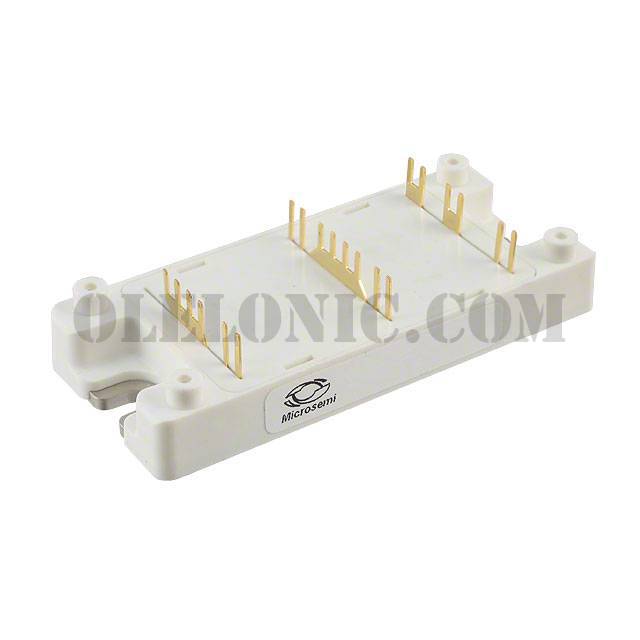

APTGF100DA120TG

Part NumberAPTGF100DA120TG

ManufacturerMicrosemi Corporation

DescriptionIGBT NPT BOOST CHOP 1200V SP4

DatasheetAPTGF100DA120TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 1200V 135A 568W Chassis Mount SP4

To learn about the specification of APTGF100DA120TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGF100DA120TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGF100DA120TG.
We are offering APTGF100DA120TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGF100DA120TG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTGF100DA120TG

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Obsolete

IGBT Type

NPT

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

135A

Power - Max

568W

Vce(on) (Max) @ Vge, Ic

3.7V @ 15V, 100A

Current - Collector Cutoff (Max)

350µA

Input Capacitance (Cies) @ Vce

6.9nF @ 25V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
