Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers

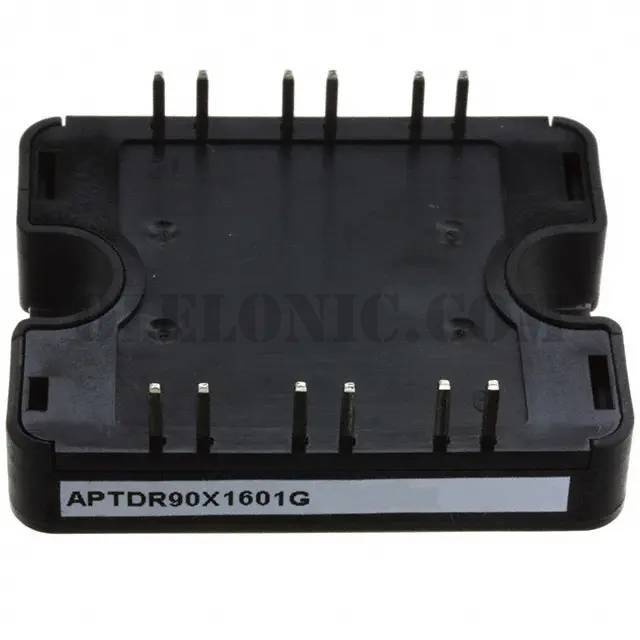

Datasheet	APTDR90X1601G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Three Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1.6kV
Current - Average Rectified (Io)	90A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 90A
Current - Reverse Leakage @ Vr	50µA @ 1600V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP1
Supplier Device Package	SP1
