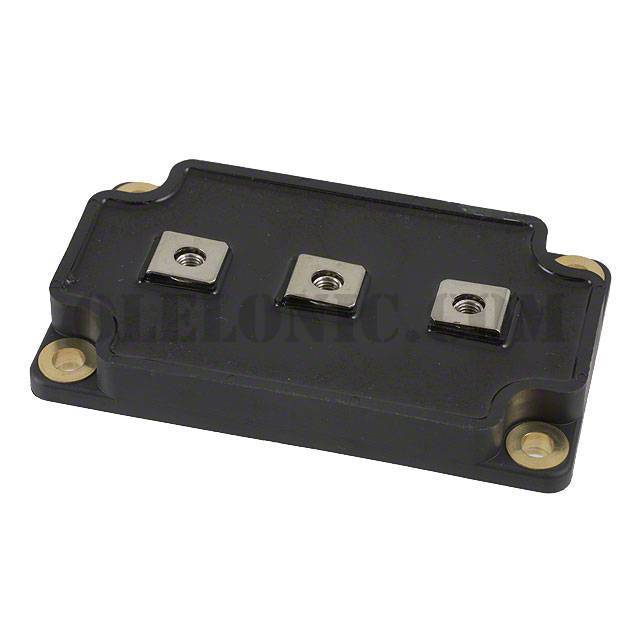

APTDF400AK120G

Part NumberAPTDF400AK120G

ManufacturerMicrosemi Corporation

DescriptionDIODE MODULE 1.2KV 470A SP6

DatasheetAPTDF400AK120G

Package / CaseLP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 1200V 470A Chassis Mount LP4

To learn about the specification of APTDF400AK120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTDF400AK120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTDF400AK120G.
We are offering APTDF400AK120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTDF400AK120G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	APTDF400AK120G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io) (per Diode)	470A
Voltage - Forward (Vf) (Max) @ If	3V @ 400A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	385ns
Current - Reverse Leakage @ Vr	250µA @ 1200V
Mounting Type	Chassis Mount
Package / Case	LP4
Supplier Device Package	SP6
