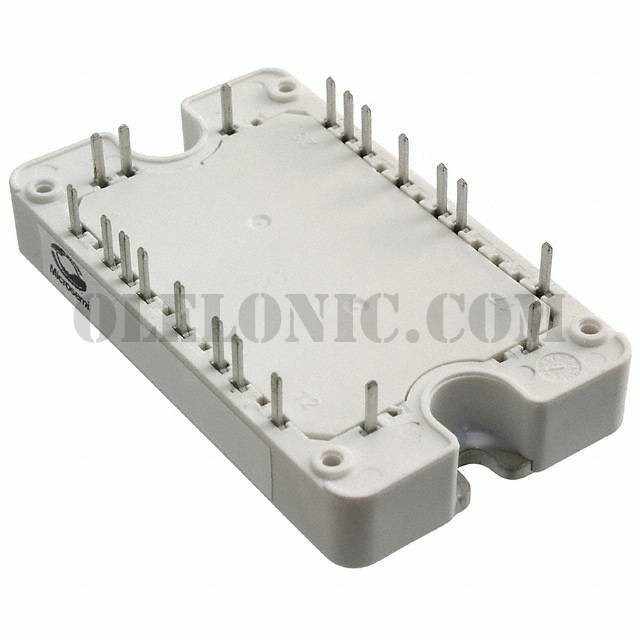

APTCV60HM45RCT3G

Part NumberAPTCV60HM45RCT3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT3 FULL BRIDGE SP3

DatasheetAPTCV60HM45RCT3G

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Full Bridge Inverter 600V 50A 250W Chassis Mount SP3

To learn about the specification of APTCV60HM45RCT3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTCV60HM45RCT3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTCV60HM45RCT3G.
We are offering APTCV60HM45RCT3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTCV60HM45RCT3G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APTCV60HM45RCT3G

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Full Bridge Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

50A

Power - Max

250W

Vce(on) (Max) @ Vge, Ic

1.9V @ 15V, 50A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

3.15nF @ 25V

Input

Single Phase Bridge Rectifier

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
