APT75GN120LG
APT75GN120LG
Part Number APT75GN120LG

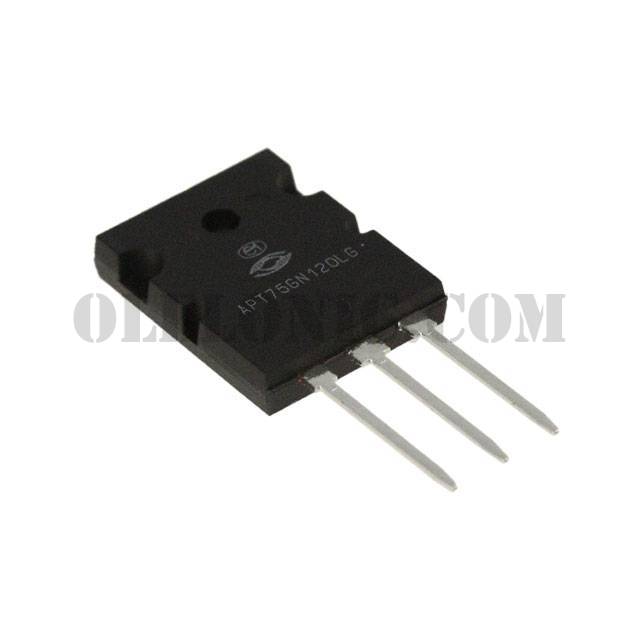

Description IGBT 1200V 200A 833W TO264
Package / Case TO-264-3, TO-264AA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 1200V 200A 833W Through Hole TO-264 [L]
To learn about the specification of APT75GN120LG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT75GN120LG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT75GN120LG.
We are offering APT75GN120LG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT75GN120LG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT75GN120(B2,L)(G)
Standard Package 1
Manufacturer Microsemi Corporation
Series -
Packaging Tube
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 200A
Current - Collector Pulsed (Icm) 225A
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 75A
Power - Max 833W
Switching Energy 8620µJ (on), 11400µJ (off)
Input Type Standard
Gate Charge 425nC
Td (on/off) @ 25°C 60ns/620ns
Test Condition 800V, 75A, 1Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264 [L]
