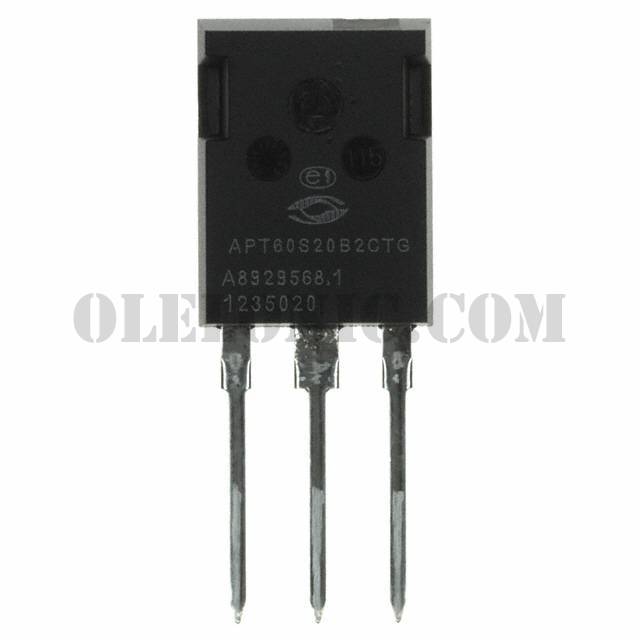

APT60S20B2CTG

Part NumberAPT60S20B2CTG

ManufacturerMicrosemi Corporation

DescriptionDIODE ARRAY SCHOTTKY 200V TMAX

DatasheetAPT60S20B2CT(G)

Package / CaseTO-247-3 Variant

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 200V 75A Through Hole TO-247-3 Variant

To learn about the specification of APT60S20B2CTG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT60S20B2CTG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT60S20B2CTG.
We are offering APT60S20B2CTG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT60S20B2CTG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	APT60S20B2CT(G)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	75A
Voltage - Forward (Vf) (Max) @ If	900mV @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	55ns
Current - Reverse Leakage @ Vr	1mA @ 200V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-247-3 Variant
Supplier Device Package	T-MAX™ [B2]
